KRASO KDS 150/90 cable entry system: the standardized solution for sealing cables in concrete walls

Benefits of the KRASO KDS system:

• Compatibility: the Kraso KDS is compatible with other modern sealing systems.
  The KDS system is resistant to water pressure up to 3.5 Bar.
• Reliability: Made in Germany from robust and reliable PVC.
• Versatility: Suitable for a wide range of construction projects, including public buildings, hospitals, educational institutions, and industrial and commercial buildings.
• Can be adapted to different configurations: can be installed horizontally, vertically, at 45 degrees using pre-prepared clips. The system is also suitable for prefabricated walls or for sealing larger cavities.
• Wide range of accessories: The Kraso KDS system is versatile and comprehensive thanks to the choice of modules.

Kraso KDS 150 system modules:

Kraso KDS 150 universal sealing insert Multiple (T)

• Universal seal for the installation of one or more cables in the Kraso KDS 150 system.
• Can be installed at a later date as it is in a split version.
• The nuts of the sealing insert have an integrated torque limiter.
• The sealing insert is 30 mm thick. Its outer diameter is 160 mm.
• Suitable for a wide range of cable diameters from 6 mm to 52 mm.

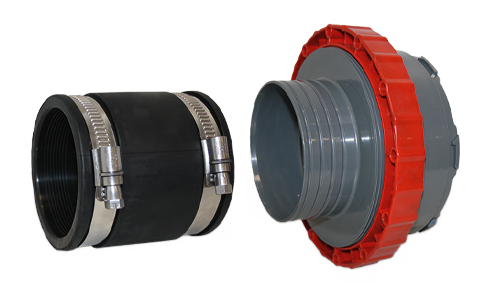

Kraso KDS 150 outside system module for corrugated pipeline connection

• Can be connected to 110 or 160 mm corrugated pipes (for 160 mm pipeline connection, it is recommended to use spacers when concreting KDS tray). Water tightness up to 2.5 bar.

Note: Information here does not contain a full spectre of KDS 150 system accessories. We can also offer other diameters and custom solutions according to your requirements.

Example of the KDS 150 cable sealing system concreting
